Description:

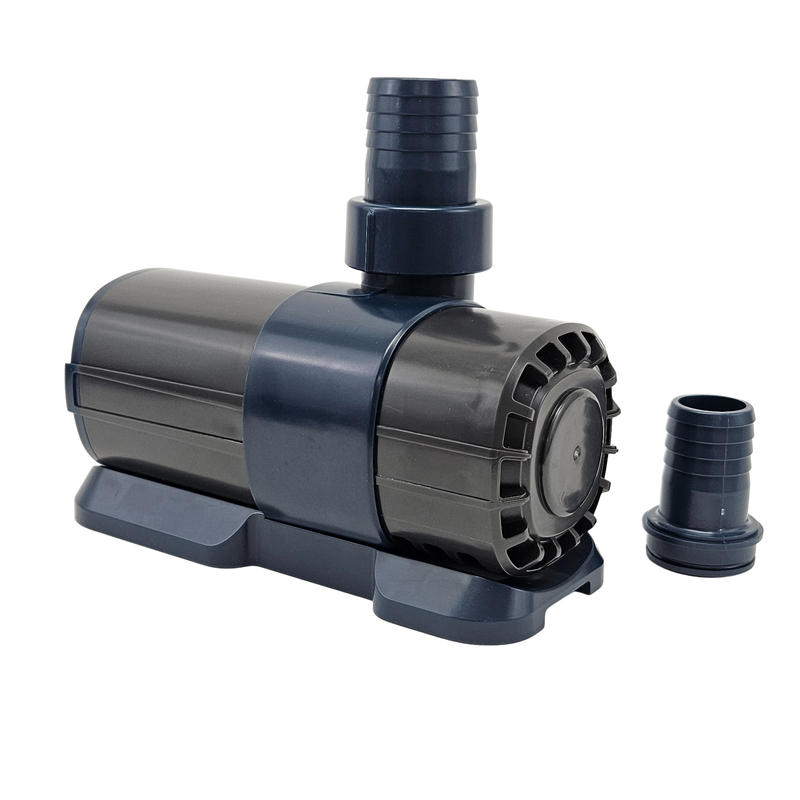

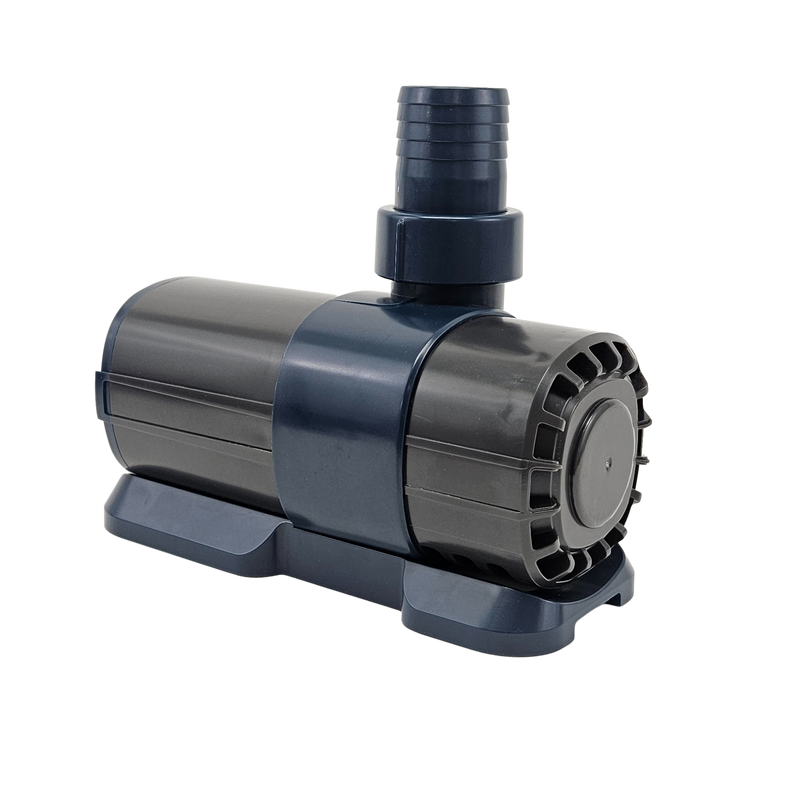

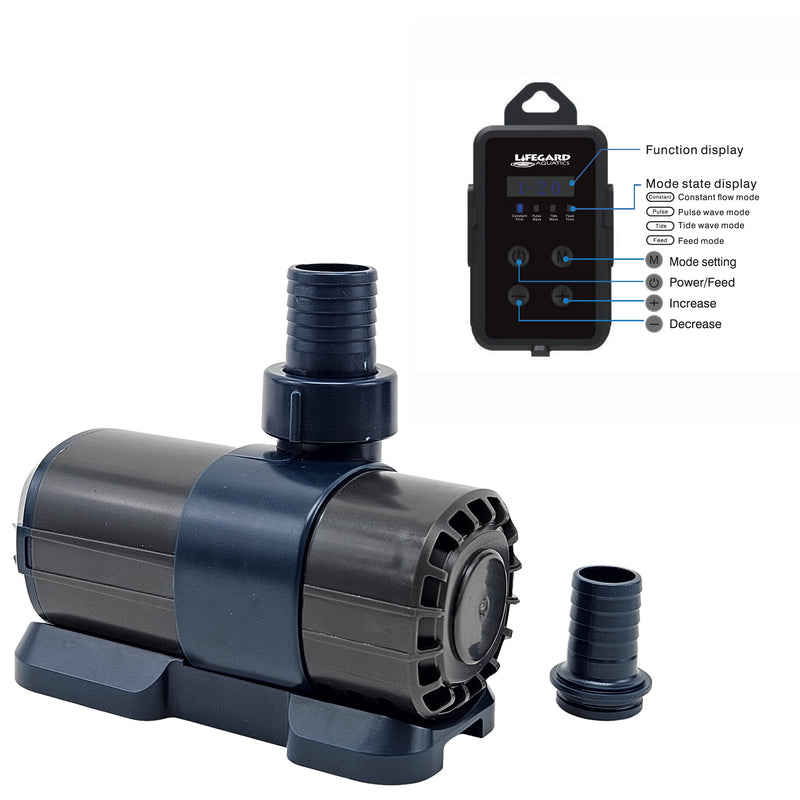

Quiet One DC Pump 3,168 GPH, Max Head 16.4', with Controller

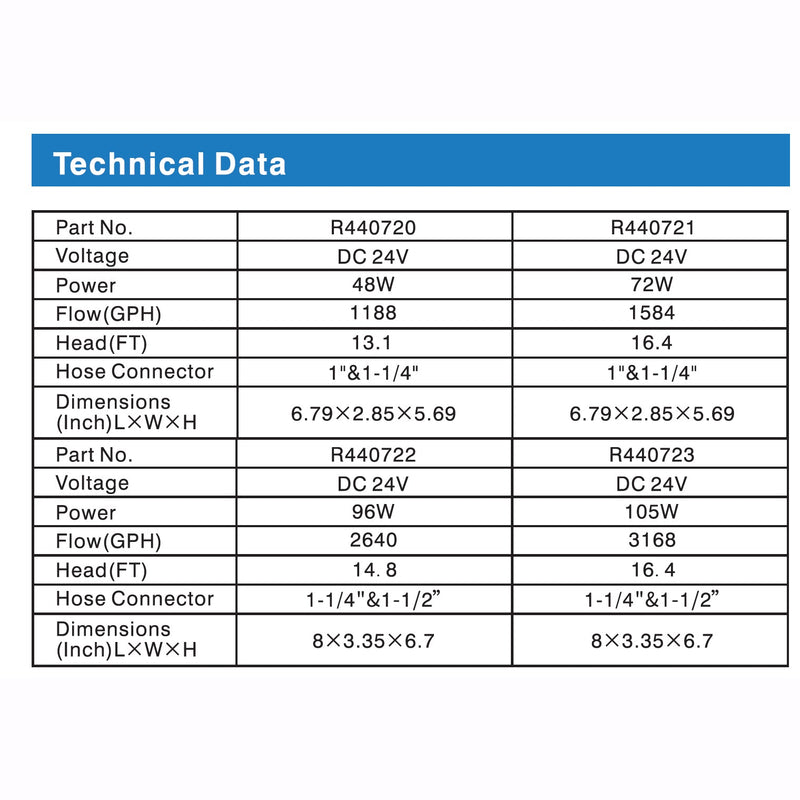

Part No. R440723
Model DC 3168 with Controller
GPH: 3168
Max Ht. Ft. 16.40
Voltage: DC 24V
Watt: 105
Suction: 1.25” and 1.50" Hose Connection
Discharge Strainer or 1.25” and 1.50" Hose Connection
Pump Dimensions (LxWxH): 8" x 3.35" x 6.7

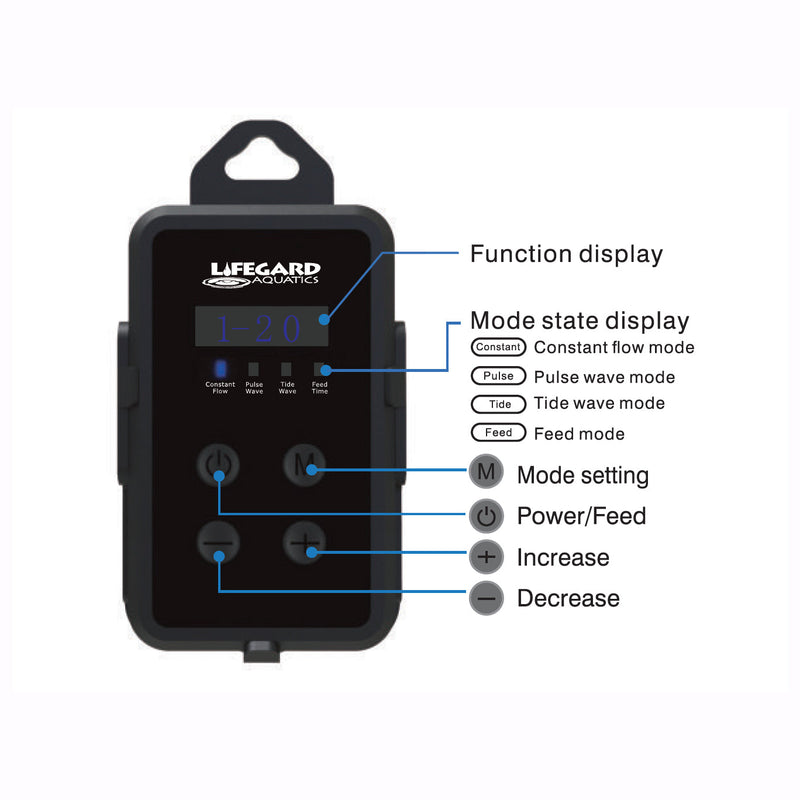

4 Modes on the Controller:
Constant Flow Mode: The water flow stays constant but you can control the intensity of the flow from level lowest -1 to strongest level-20. 1 = Min Power Consumption
Constant Flow Mode: The water flows in a wave format with high flow followed by low flow. The high and low intensity wave duration stays the same. You can control the intensity of the wave from level lowest -1 to strongest level-20. 1 = Min Power Consumption
Tide Flow Mode: The water flows in a longer wave format with high flow followed by low flow. The high tide duration is longer than the low tide duration. You can control the intensity of the wave from level lowest -1 to strongest level-20. 1 = Min Power Consumption
Feed Mode: By pressing the power button on the controller you can select the feeding duration. While the pump is on press the power button once, the display shows F-10 the pump shuts for 10 minutes. Press the power button twice, the display shows F-20 the pump shuts for 20 minutes. Press the power button three times, the display shows F-30 the pump shuts for 30 minutes. After the feeding time is over the pump goes back to the last setting.
For Submersible or External Applications in Salt or Freshwater Aquariums.
Extremely quiet operation…so quiet you’ll swear it’s not running.
Safe for Salt or Freshwater applications.
Use with all types of filters. Includes 6’cord.
ECO-SAV™ runs cooler and generates more power with less energy consumption.
Internal recirculation prevents overheating and ejects obstructing debris.
Remarkable impeller technology provides combined rotors, improved shaft materials and corrosion resistant bearings.
EZ access cover allows ease of maintenance of rotor, shaft and removable impellers.
Innovative “cooling chambers” provide air-cooling during dry use and water-cooling in wet applications.
Pre-filter Grill with Flow Control Valve in submersible applications.
